Working on a late-model Harley Sportster, we ran into a strange oil leak after a test ride that at first looked much worse than it actually was.

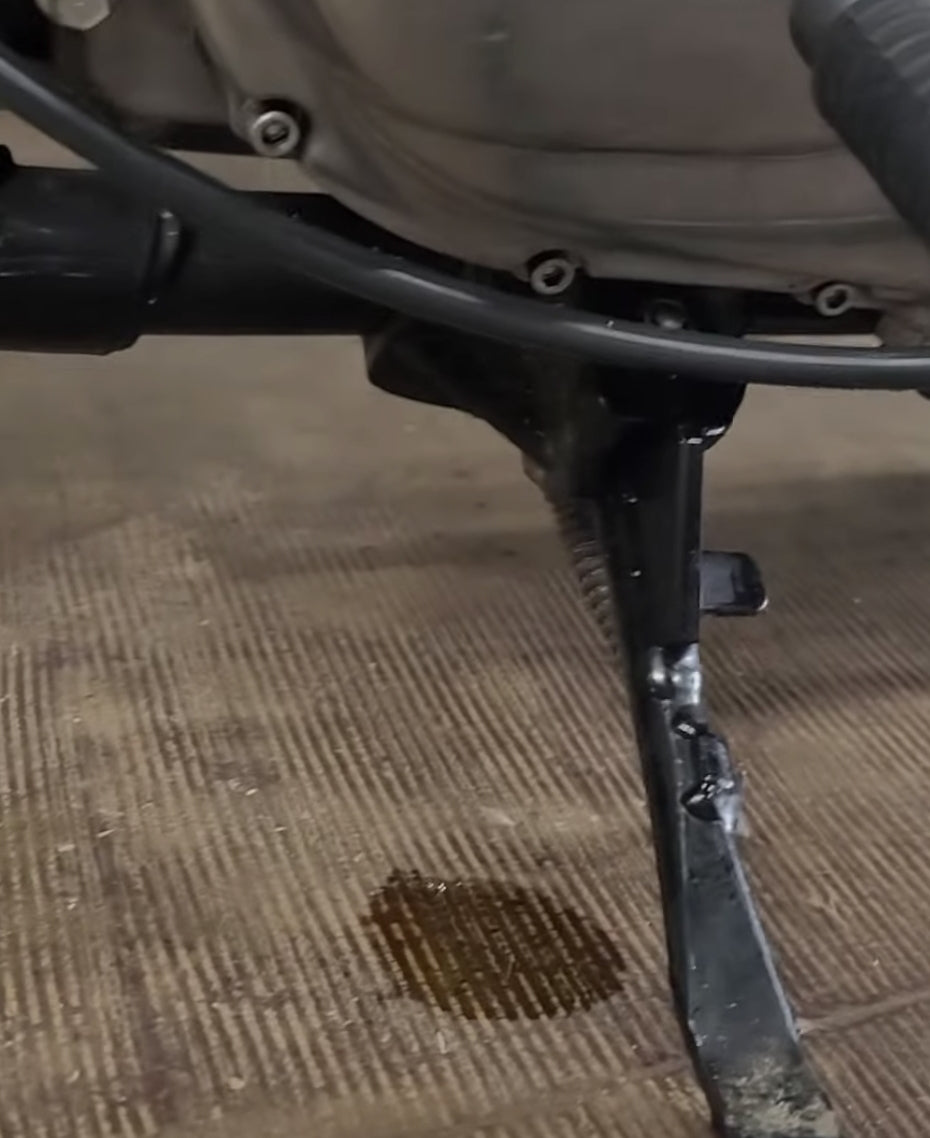

Oil appeared to be leaking from the primary side of the bike and making its way down around the clutch cable area. Situations like this can easily make you think there’s a major gasket failure or internal issue, but sometimes the problem is much simpler.
🔧 A Common Harley Oil Leak Area
On many Harley-Davidson models, including Sportsters, oil can leak through the clutch cable fitting itself if the internal O-ring or seal begins to fail. But this particular oil leak was being caused by a clogged crankcase vent tube due to a dirt dauber nest. Critters Love finding small protected places to build nests.
Over time:
heat
vibration
age
repeated cable movement
can allow oil to seep past the seal and travel down the cable housing.
Because oil tends to spread while riding, the leak can appear larger or come from somewhere completely different.
🏍 Symptoms You Might Notice
Some common signs include:
Oil around the clutch cable connection
Oil dripping after riding
Oil collecting near the primary cover
Oil streaks running down the cable housing
Small but persistent primary oil loss
In many cases, the leak only becomes obvious after the bike gets hot during a ride.
🛠 The Fix
Fortunately, this is usually a relatively simple repair compared to replacing major gaskets or tearing into the primary unnecessarily.
This particular problem was resolved by cleaning out the small vent tube behind the rear cylinder by tapping on it and squeezing it and working the dirt and crud out of the tube so that the crankcase could breathe properly. Once the tube was cleaned of all debris our oil leak was resolved.
Inspect:
The clutch cable fitting
The cable seal/O-ring
The vent tube behind the rear cylinder
And the surrounding connections before assuming the worst.
Catching a small leak early can help prevent bigger messes and unnecessary repairs later.
🔥 Real-World Shop Tip
Sometimes the hardest part of diagnosing an oil leak is figuring out where it’s actually coming from.
Oil travels while riding, especially on Harleys, so always clean the area thoroughly and inspect carefully before replacing parts.
📍 Built From Real Shop Experience
This is the kind of real-world troubleshooting we run into regularly at Lil Chub Customs—practical repairs, diagnostics, and problem-solving from an active motorcycle shop in Fitzgerald, Georgia.
Watch the video here
https://youtube.com/shorts/G4i65I5WDPs
