How to Remove & Replace the Air Filter on a 2024–2026 Kawasaki Ninja 500
This guide also applies to 2024, 2025, and 2026 Ninja 500 models and may share similarities with the 2018–2022 Kawasaki Ninja 400.
The air filter is one of those maintenance items that often gets overlooked, but it plays a direct role in how your engine breathes and performs. The good news is that on the Ninja 500, replacing it is something you can tackle yourself with basic tools and a little patience. Here's how we do it at the shop.
What You'll Need
Key for the seat lock
4mm hex/Allen screwdriver or bit
10mm socket and ratchet
Flathead screwdriver (long handle recommended)
Phillips head screwdriver
Small block of wood (a scrap 2x4 works great)
Needle nose pliers (bent needle nosel pliers if you have them)
Safety glasses — fuel may be under pressure
Step 1 – Remove the Passenger Seat
Using your key, locate the seat lock on the rear left side of the tail section. Turn the key to unlatch and lift the passenger seat away.
Step 2 – Remove the Driver's Seat
With the passenger seat off, look on the right side underneath where it sat. You'll find a pull cable — give it a pull and the driver's seat will release. Lift it away.
Step 3 – Remove the Four Upper Fairing Panels
There are two panels on each side, forward of the tank. Work one side at a time and always remove the forward panel first.
Remove the two 4mm screws securing the forward panel
Pop the panel loose and set it aside
Move to the rear panel (the one that meets the tank)
Remove its two 4mm screws, then pop it loose — it has tabs that seat into rubber grommets, so work it gently
Repeat on the opposite side
Step 4 – Remove the Tank Bolts and Prop the Tank
With all four panels off, locate the two 10mm bolts at the rear underside of the fuel tank. Remove both bolts, then slide your 2x4 underneath the rear of the tank to prop it up and give yourself working room.
Step 5 – Disconnect the Fuel Line
Using a long flathead screwdriver, reach in and release the retaining clip that holds the fuel line onto the fuel pump. Take your time here — this is a plastic fitting and it can be damaged if forced. Also keep in mind the fuel system may be under pressure, so keep your face clear and consider wearing safety glasses.
Step 6 – Disconnect the Fuel Pump Electrical Connector
Locate the fuel pump electrical connector, depress the locking clip, and pull the connector free.
Step 7 – Remove the Vent and Drain Lines
On the forward left side of the tank you'll find two vent tubes. A pair of needle nose pliers — especially a hose or vent style with angled tips — makes getting into this tight spot much easier. Remove both lines.
Step 8 – Lift the Tank Away
With everything disconnected, lift the rear of the tank while pulling it back slightly to release it from its forward mounting point. Set the tank somewhere safe and flat. Be mindful of that plastic fuel pump connection — it's the most vulnerable piece in this whole process.
Step 9 – Disconnect the Airbox Lid Connector
At the rear of the airbox lid you'll find an electrical connection. Depress the clip and disconnect it before touching any screws.
Step 10 – Remove the Airbox Lid
Remove the approximately eight Phillips head screws securing the airbox lid. Once all screws are out, lift the lid away.
Step 11 – Remove the Air Filter
There's one final Phillips head screw at the rear of the air filter holding it in place. Remove it and pull the air filter free.
Installation is the reverse of removal.
Why Air Filter Maintenance Matters
A clogged or dirty air filter restricts airflow to the engine, which can hurt performance, reduce fuel economy, and in bad cases cause running issues. We recommend inspecting your filter at every service interval — more often if you ride in dusty conditions.

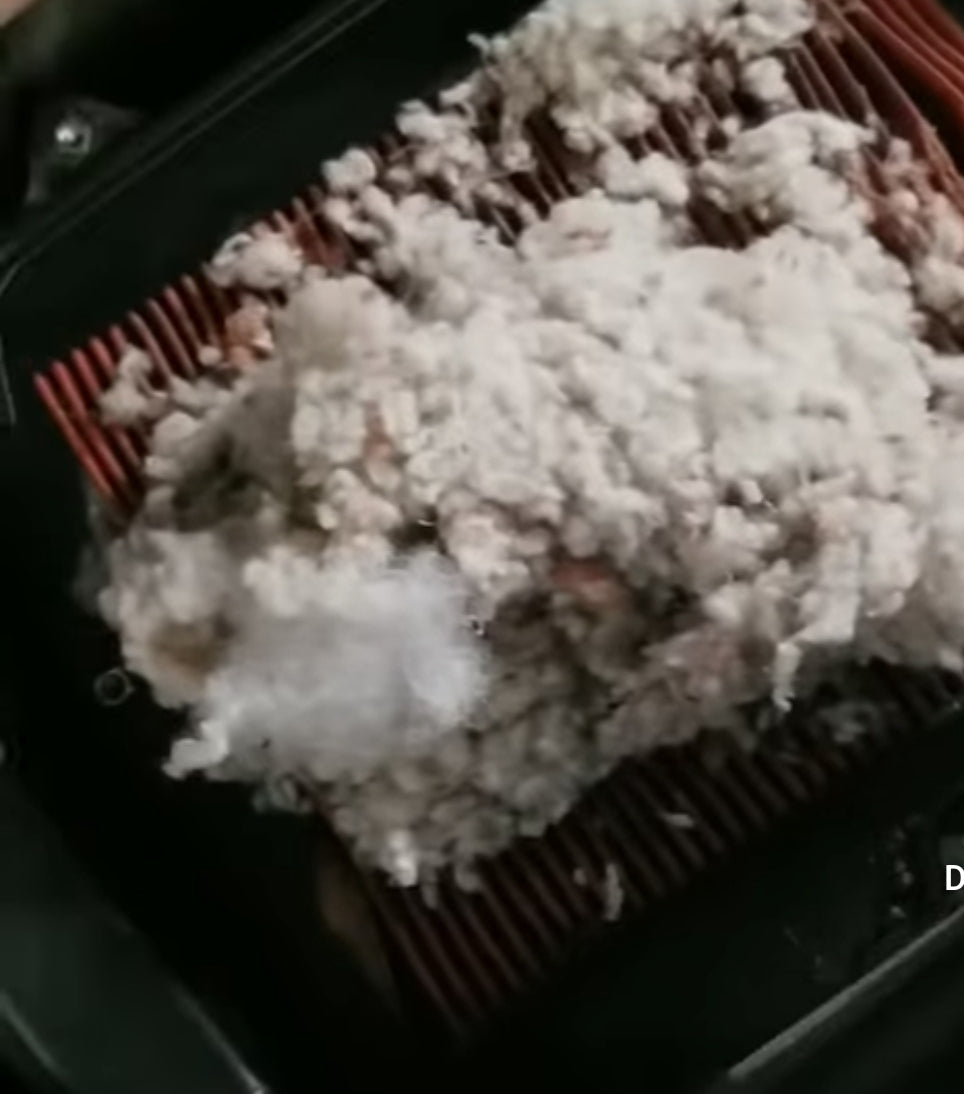

And if you're riding in the South, here's something we've seen more times than we can count: critters. Mice, wasps, and other small animals love to find their way into warm, sheltered spots on a parked bike — and the airbox is one of their favorites. We've pulled nests out of more than a few. If your bike has been sitting for a while, it's worth popping the airbox open just to check.
Need a Filter for Your Ninja 500?
If you're ready to replace your air filter and want to make sure you're getting the right part, reach out to us — we're happy to help you get what you need.
Watch the full step-by-step video below — no talking, no fluff, just the process.
